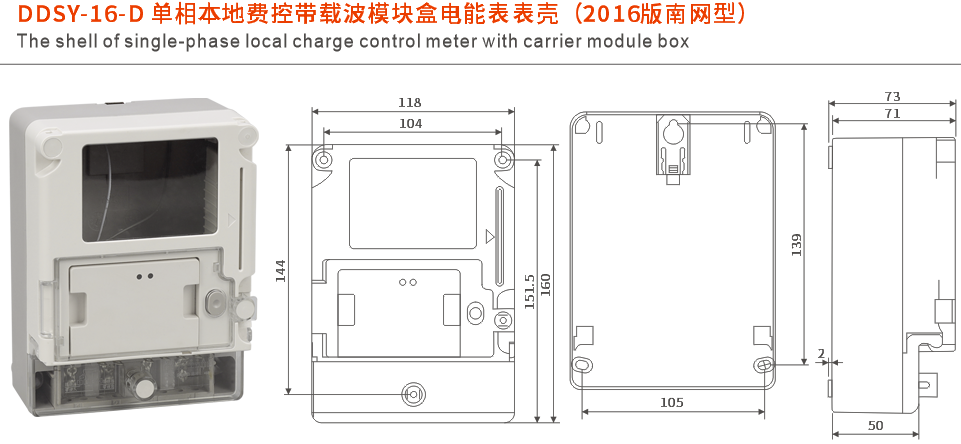

DDSY-16-D單相本地費控帶載波模塊盒電能表表殼
技術(shù)參數(shù)
◎規(guī)格:端鈕盒銅條,小A(8×10.5)、中A(10×12)、大A(11×13)
◎脈沖信號線:2、4、6、8線或2、4、6、8銅件
◎電流配置:5(30)A帶1-8組輔助端口
10(60)A帶1-8組輔助端口
20(100)A帶1-8組輔助端口
◎說明:16年版南網(wǎng)型表殼,帶載波模塊盒,帶開蓋記錄柱、有
輪顯按鍵。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(8×10.5), middle
A(10×12),large A(11×13)
◎Pulse signal lines:2,4,6,8 lines or 2,4,6,8 copper pieces
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note:the shell of 2016 version southern grid meter is equipped with
carrier module box and recording column of shell open, there is slide
-show button.
