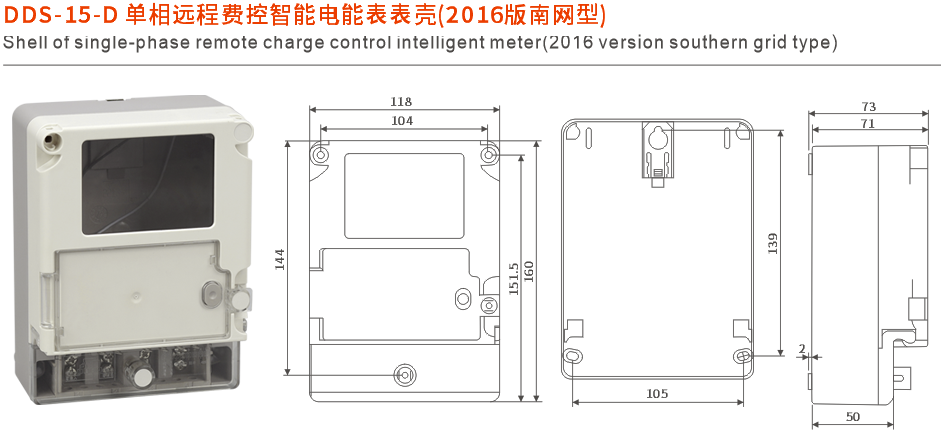

DDS-15-D單相遠程費控智能電能表表殼
技術參數
◎規格:端鈕盒銅條,小A(8×10.5)、中A(10×12)、大A(11×13)
◎脈沖信號線:2、4、6、8線或2、4、6、8銅件
◎電流配置:1.5(6)A帶1-8個輔助端口
10(40)A帶1-8個輔助端口
20(100)A帶1-8個輔助端口
◎說明:16年版南網型表殼,帶開蓋記錄柱,有輪顯按鍵,拆分
式端鈕盒。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(8×10.5), middle
A(10×12),large A(11×13)
◎Pulse signal lines:2,4,6,8 lines or 2,4,6,8 copper pieces
◎Current configuration: 1.5(6)A with 1-8 sets of auxiliary ports
10(40)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note:the shell of 2016 southern grid meter, is equipped with recording
column of shell open; it has slideshow buttons and split-type terminal
box.
