技術(shù)參數(shù)

◎規(guī)格：端鈕盒銅條，小A(8×10.5)、中A(10×12)、大A(11×13)

◎脈沖信號線：2、4、6、8線或2、4、6、8銅件

◎電流配置：1.5（6）A帶1-8個輔助端口

                     10（40）A帶1-8個輔助端口

                     20（100）A帶1-8個輔助端口

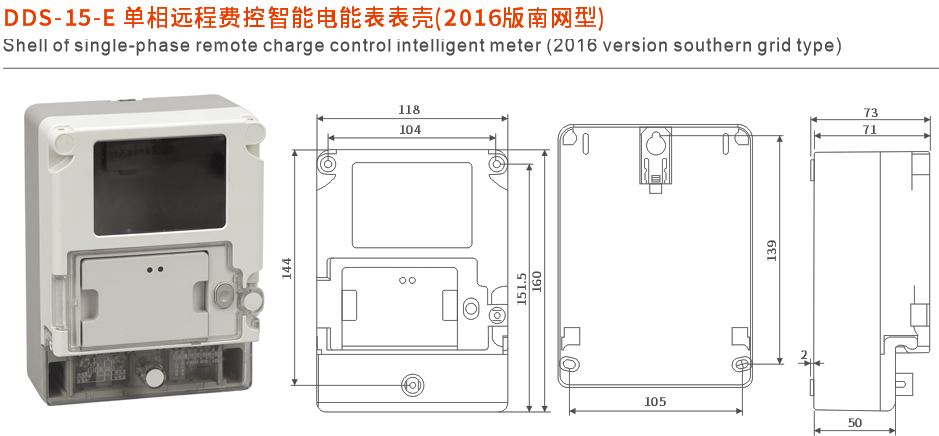

◎說明：16年版南網(wǎng)型表殼，帶載波模塊盒，帶開蓋記錄柱、有

   輪顯按鍵，拆分式端鈕盒。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(8×10.5), middle

    A(10×12),large A(11×13)

◎Pulse signal lines:2,4,6,8 lines or 2,4,6,8 copper pieces

◎Current configuration: 1.5(30)A with 1-8 sets of auxiliary ports

                                       10(40)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

◎Note:the shell of 2016 version southern grid meter is equipped with

    carrier module box and recording column of shell open; it has slide-

    show buttons and split-type terminal box.
