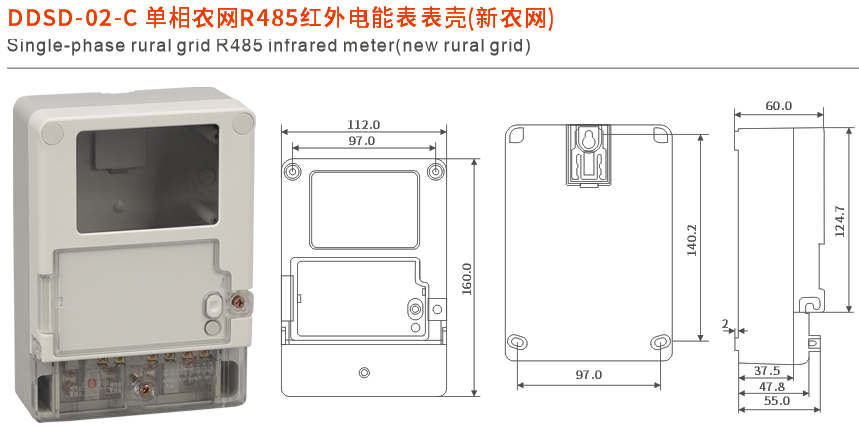

DDSD-02-C單相農網R485紅外電能表表殼
技術參數
◎規格:端鈕盒銅條,小A(8×10.5)、中A(10×12)、大A(11×13)
◎脈沖信號線:2、4、6、8線或2、4、6、8銅件
◎電流配置:5(30)A帶1-8組輔助端口
10(60)A帶1-8組輔助端口
20(100)A帶1-8組輔助端口
◎說明:13年版農網型表殼,罩殼帶開蓋記錄柱、有輪顯按鍵及
編程按鍵,拆分式端鈕盒。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(8×10.5), middle
A(10×12),large A(11×13)
◎Pulse signal lines:2,4,6,8,lines or 2,4,6,8copper pieces
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note:the shell of 2011 version rural grid meter has recording column
of shell open, it also has slideshow and programming buttons, with
split-type terminal box.
