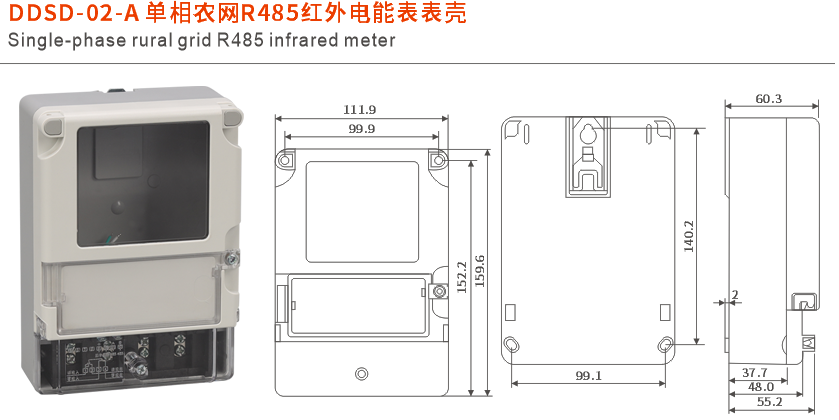

DDSD-02-A單相農網R485紅外電能表表殼
技術參數
◎規格:端鈕盒銅條,小A(8×10.5)、中A(10×12)、大A(11×13)
◎脈沖信號線:2、4、6、8線
◎電流配置:5(30)A帶1-8組輔助端口
10(60)A帶1-8組輔助端口
20(100)A帶1-8組輔助端口
◎說明:09年版農網單相遠程費控表殼,罩殼帶開蓋記錄柱、帶
塑料鉛封。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(8×10.5), middle
A(10×12),large A(11×13)
◎Pulse signal lines:2,4,6,8,lines
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note:the shell of 2009 version rural grid single-phase remote charge
control meter, the shell has recording column of shell open, there is
slideshow button, with split-type terminal box.
