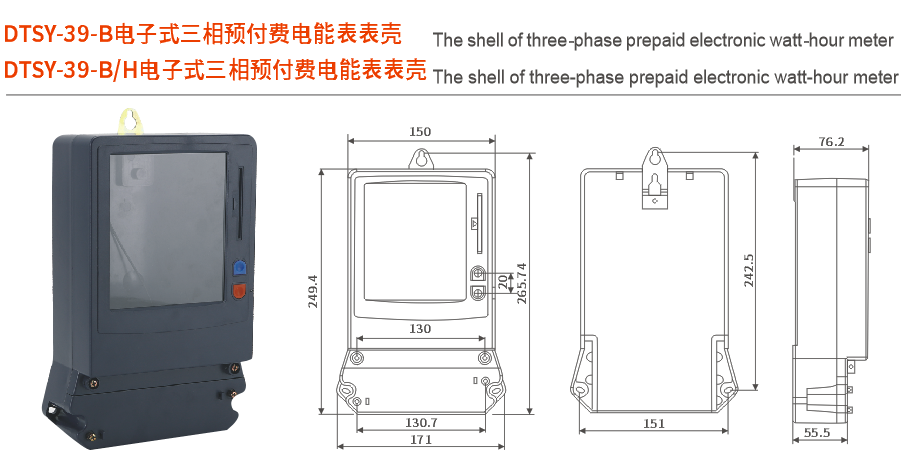

DTSY-39-B電子式三相復費率電能表表殼
技術參數
◎規格:端鈕盒銅條,小A(7×9)、中A(9×11、10×12)、
大A(11×13)
◎電流配置:三相四線1.5(6)A帶10個輔助端口
三相四線10(40)A帶10個輔助端口
三相四線20(100)A帶10個輔助端口
另有三相三線小電流端口可選配
◎說明:采用拆分式端鈕盒設計,經濟實惠。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(7×9), middle A
(9×11,10×12), large A(11×13)
◎Current configuratlon: three-phase four-wire 1.5(6) A with 10 auxiliary ports
three-phase four-with 10 (40) A with 10 auxiliary ports
three-phase four-with 20 (100) A with 10 auxiliary ports
three-phase three-with with low current port is optional
◎Note: lt uses split terminal box which is convenient and affordable
