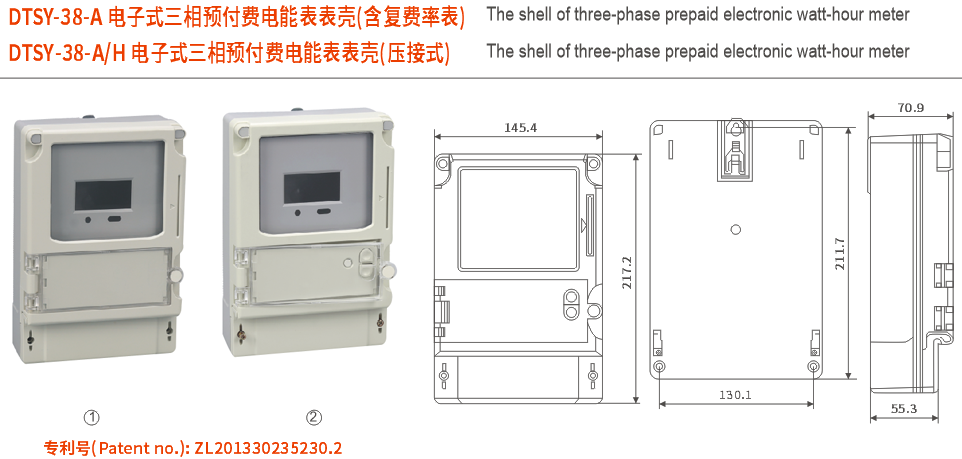

DTSY-38-A電子式三相預付費電能表表殼
技術參數
◎規格:端鈕盒銅條,小A(7×9)、中A(9×11、10×12)、
大A(11×13)
◎電流配置:三相四線1.5(6)A帶10個輔助端口
三相四線10(40)A帶10個輔助端口
三相四線20(100)A帶10個輔助端口
另有三相三線小電流端口可選配
◎說明:采用最新國網標準拆分式端鈕盒及塑料鉛封設計,外觀
高端大氣,另有復費率表型可供選擇。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(7×9), middle A
(9×11, 10×12), large A(11×13)
◎Current configuration: three-phase four-wire 1.5(6)A with 10 auxiliary ports
three-phase four-wire 10(40)A with 10 auxiliary ports
three-phase tour-wire 20(100)A with 10 auxiliary ports
three-phase three-wire with low current port is optional
◎Note: it designed by the latest standard split terminal box and plastic
seal of state grid, the appearance is high-end and beautiful, there
is also multi-rate meter for choice.
