單相遠程費控電能表表殼外殼技術參數

◎規(guī)格：端鈕盒銅條，小A(8×10.5)、中A(10×12)、大A(11×13)

◎脈沖信號線：2、4、6、8線

◎電流配置：1.5（6）A帶1-8個輔助端口

                      10（40）A帶1-8個輔助端口

                      20（100）A帶1-8個輔助端口

◎說明：09年版南網型表殼，罩殼帶開蓋記錄柱、有輪顯及編程

   按鍵。

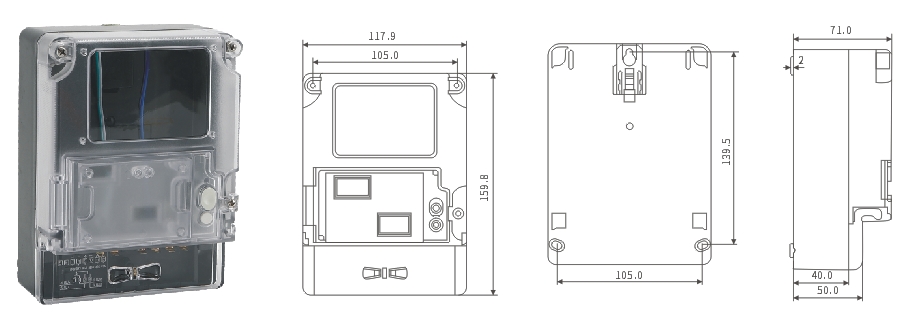

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(8×10.5), middle

    A(10×12),large A(11×13)

◎Pulse signal lines:2,4,6,8,lines

◎Current configuration: 1.5(6)A with 1-8 sets of auxiliary ports

                                       10(40)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

◎Note:the shell of 2009 southern grid meter, has recording column of

    shell open, it also has slideshow and programming buttons.
